HP 3326A Two-Channel Synthesizer: replaced, and replaced again!

Recently, two assemblies of a non-working HP 3326A were fixed by replacing their 15 uF tantalum caps – a good number of them had failed, presumably, because of a bad production lot of these capacitors (see earlier post)

Unfortunately, during the test run, some sporadic failures of the power supply, with overcurrent indication flashing. Then, permanent failure of the -15 V rail – as it turns out, by a short in the assemblies we had just fixed! An again, a discolored tantalum capacitor. Replaced it, and a few hours later, the same issue, with another capacitor of the same kind.
My mistake, I had use a bag of cheap China-sourced 15 uF, 25 Volts dipped tantalums, but these seem to be no good (unlike other Chinese electronics good that have attained good quality in recent years, provided you don’t by the cheapest kind). Maybe it was my mistake to buy the cheapest tantalum capacitors, but not much choice if you need 34 pieces to fix some old equipment – I don’t want to pay EUR 1.45 each from top brand parts from Mouser or similar sources.

With some luck, I found reasonable prices KEMET T350 series Ultradip II capacitors, these are known to be reliable.

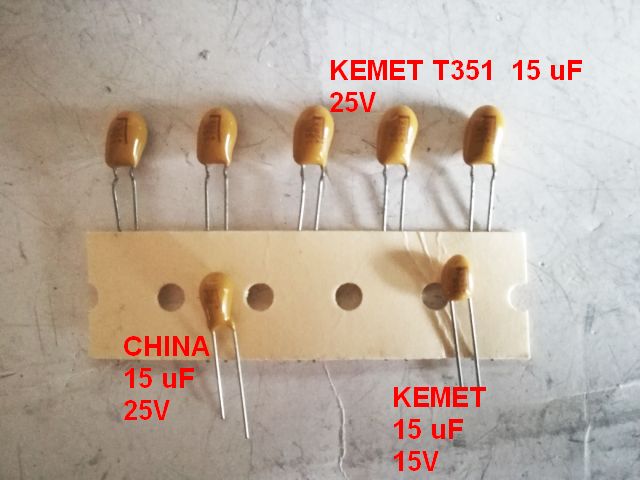

You can see the size differences – the KEMET part is much bigger than the Chinese 25 Volts part – it is more similar in size to a 15 Volts KEMET part. Probably, the design was put a bit to the limit.

With the capacitors replaced and another 48 hours of run in test – no issues at all and the 3326A can be considered fixed and working for now.
