HP 8754A 4 MHz to 1300 MHz Network Analyzer: final repairs, and a function test

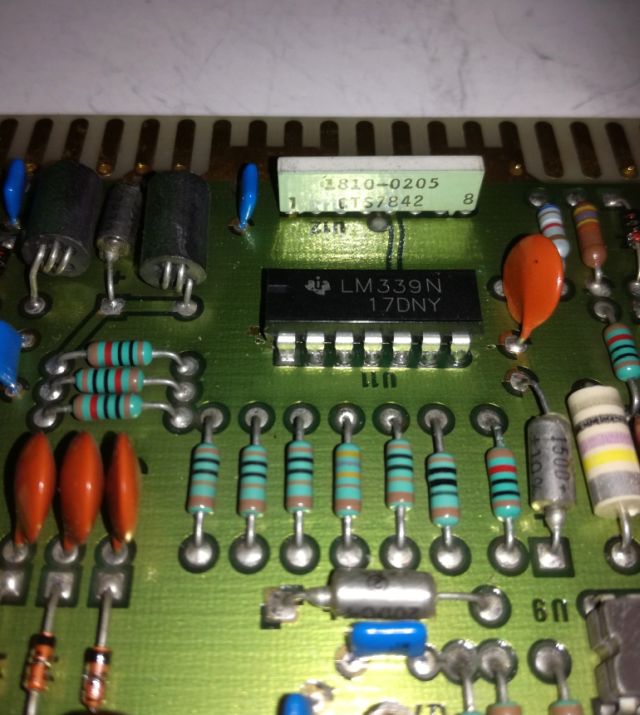

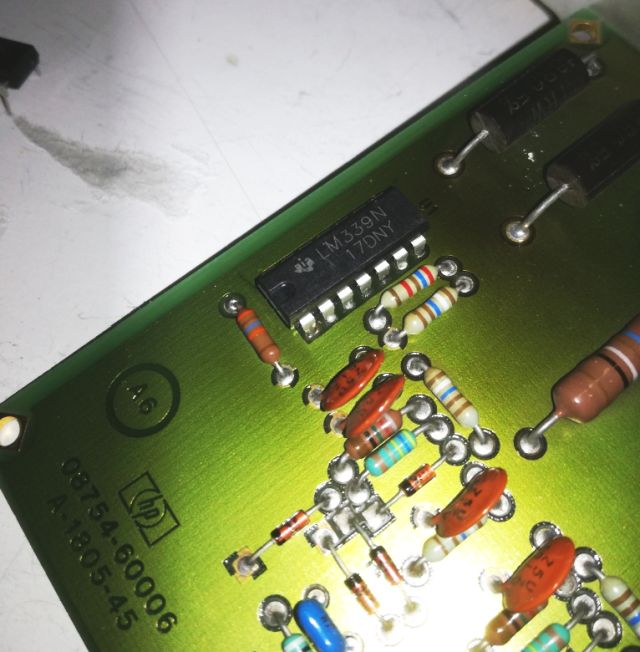

Finally, the spare parts arrived, and the repairs of the HP 8754A could be finalized. The LM339 comparators, fitted to the boards…

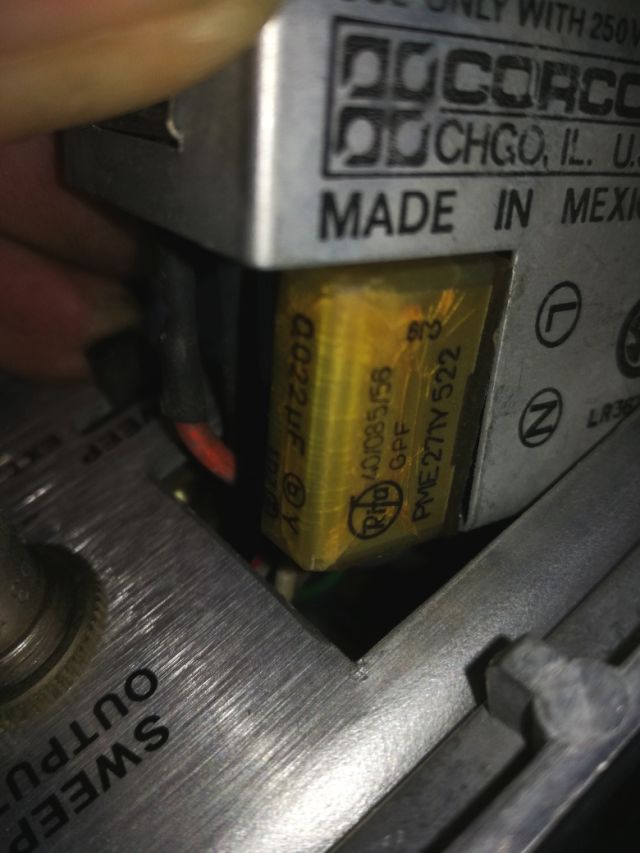

The cap of the mains filter had many small cracks – replaced. For some reasons, the original filter had a Y-rate cap across the mains supply – Y rating is usually for connection from mains to earth. So I replaced it with a X2 rated cap for service parallel to mains.

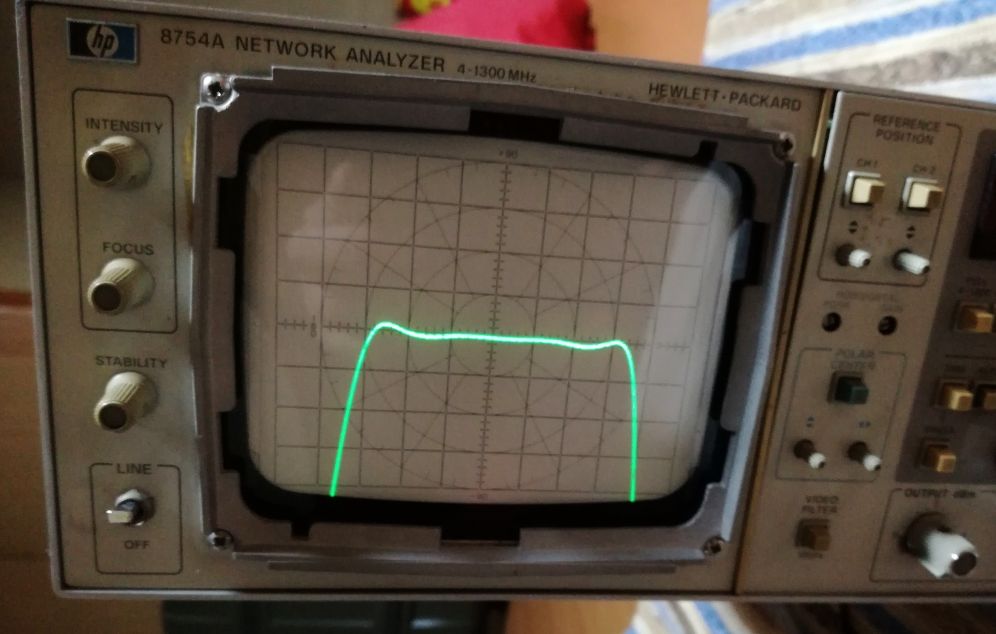

Some tests – the 8754a is a very nice unit, because of its instantaneous response to the dial settings, rather than the delay of any digital network analyzer. Even the most modern of all units still don’t such a direct feel compared to the fully-analog 8754a.
