HP 8569B (8565A) Spectrum Analyzer: curing the knob disease

Having seen quite a few of the 8569A, 8569B, and 8565A analyzers in the shop recently, once common issue are the controls. The 3-knob operation is one of the features that makes these long-established machines still desirable for today’s work, in particular, for general test and troubleshooting in the microwave region, up to 22 GHz, and above. At the same time, these knobs were made of plastic, and they age – most of they show cracks, which will sooner or later require difficult repair. In the current case, I am dealing with the unit described earlier, it is a 8569B, and someone had fit a 8565A control pad – all of the knobs more or less cracked and useless – I might use their remains to fix upcoming instruments.

So, what do to? Well, decided to go for a rigorous approach, and provide completely new knobs. These use a coaxial design, with 1/4″ outer shaft, and 1/8″ inner shaft. For the small controls, just ordered a few Augat/Alco knobs, which are quite sturdy and easy to mount.

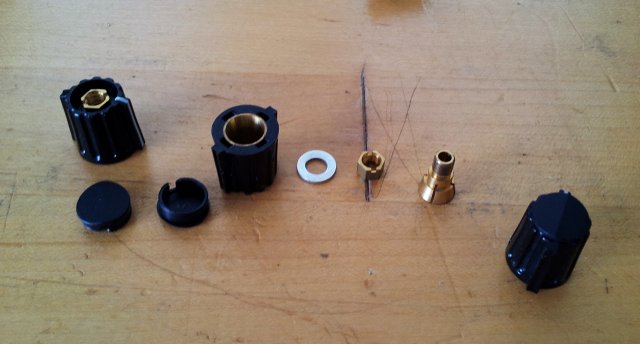

8569b augat alco knob

The large knobs, I custom machined back home in the main workshop, using my little CNC lathe (kind of an overkill) – they are made from POM/Delrin plastic, with some brass inserts, and 4-40 set screws. The knobs are knurled at the outside – one turned out a bit black, because I didn’t clean the tool properly… fair enough.

8569b large knobs

The only downside – there are no markings on the knobs, like for the originals, but such markings aren’t really needed for the 8569B which has a full on-screen display of all settings. Also the ‘lock’ positions for coupled BW-Span still works!

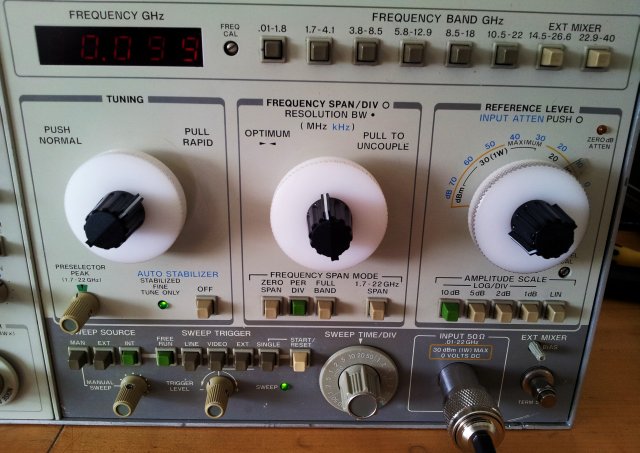

8569b new knobs detail

8569b new knobs mounted

All in all, I’m pretty happy with this repair, estimated useful life of the new knobs – 30 years, and replacements can be made, as we go. But maybe, by then, the unit might be really obsolete, although that’s the thing I am least sure about!

2 thoughts on “HP 8569B (8565A) Spectrum Analyzer: curing the knob disease”

  1. Hi,

    It’s five years later, and I have almost the same problem: I’ve got an 8559A that’s just completely missing some of its knobs. Do you have any insights gained from your work that I might be able to take advantage of? Like what brass inserts you used, what diameters and depths worked for you, etc.?

    Thanks for any suggestions!

    1. Hi, I didn’t take measurements or drawings but just machined them to reasonable size with a digital readout on the lathe and same dimensions. I don’t believe the dimensions are too critical except the inner bore, make it a good fit. Drill is not enough. Also take care with any screws that hold the knob, don’t deform the hollow shafts. Better use two set screws and some loctite, two screws at an angle of 120 degrees.
