Outdoor movie theater: a digital projector ceiling mount

In preparation for warm spring weather and long summer nights I am already gearing up my outdoors installations, in particular, a video projector will be handy to screen some movies.
It will be working together with a Miracast Wifi display, so it can show streams from practically any device.

The projector is a fairly lightweight model, because I only desire an about 150 cm wide screen.

There are various commercial ceiling mounts, but they all seem about flimsy and inaccurate to adjust. So I quickly fabricated a precision-adjustable mount.

First, a metal plate was affixed the the projector, with a standard UNC 1/4″-20 screw. It is about 10 mm thick hard aluminum, just a piece of leftover scrap (that’s why there are various holes in it).

On the projector side, a 1 mm NBR rubber plate is used to avoid movement and scratches.

The adjustment uses three M6 screws, 1 mm pitch will allow very precision adjustment by Allen key.

For the ceiling side, we use an 18 mm thick piece of plywood, and a M10 bolt. Surely, a longer bolt, rod or pipe could be used depending on the needed distance and rigidity. For the current setup, the M10 bolt is plenty rigid enough.

There are three springs (stainless) to keep the holding plate – mounting plate system tensioned so that the adjustment screws can work precisely.

Still, we need to get a suitable projection screen, and some speaker.

But already now looking forward to various summer movie screenings.

Laser cutter setup: air supply, off-gas and various cutting tests

Finally I find some time to document all the remaining parts of the laser cutter, Workshop Upgrade: Laser cutter and engraver SCULPFUN S9. The cutter itself is just the common off-the-shelf kit, but the air nozzle and enclosure has been custom made. If you want to cut wood, paper, plastics, there will be a lot of bad-smelling and potentially toxic fumes, so better you enclose the machine and provide adequate ventilation. Also, for wood, paper and such, you will need a strong air flow to ensure clean cutting without burn marks.

The setup is now arranged in the basement, so that it can be used quickly and without setup time. There is a metal plate inside, zinc plated steel, so thin materials can be fixed by magnets.

The enclosure, made from 15×15 mm square steel tubing, painted, and the openings closed with white PVC sheet, and yellow (laser-blocking) Plexiglas.

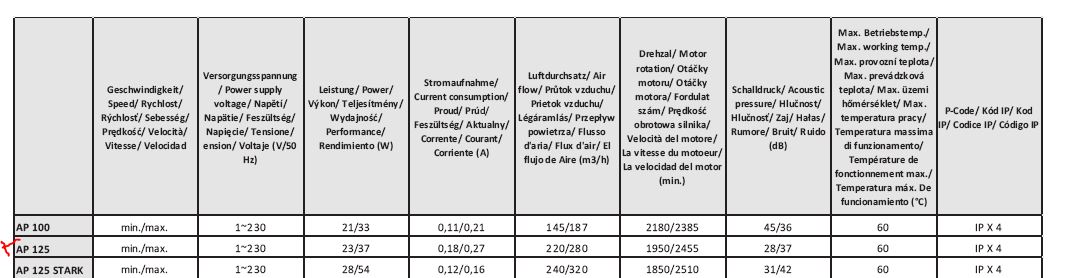

The exhaust is a fan I had handy, a Dalap AP series 125 size, it is quiet and powerful, but surely any similar fan could be used.

There are some openings around the cover (upper) part of the enclosure, accordingly, air can enter and flush out the fumes. The off-gas is connected to an old, disused chimney.

Next, we need a reliable air source. In the main workshop, I already operate a larger air compressor, but it is noisy, and there is no pipeline to the house. Rather than building such pipe system, I decided to setup a second compressor, a quiet compressor, to make the work with the laser cutter more comfortable (hard to focus on any work close to a running compressor…).

It is a Hyundai brand silent compressor, quite decent built quality, and inexpensive for what it is.

With these data, it is running about 30% of the time, when the cutter is taking the full amount of air.

The tank is running with 6-8 bars pressure, by on-off regulation. The line pressure is set to 5 bars, so the pressure to the laser cutter system is stable.

There is already a moisture (water droplet) filter at the compressor, but I added another air filter, a simple model, EIF 4000-04, which is a centrifugal filter including a 5 micron particle filter. This is prevent particles from getting into the needle valve (potentially affecting or blocking the air flow), and removing any water droplets (condensate) in the line.

For easy use, there is a cut-off valve, and precision needle valve (Festo GR-QS-8) to set the air flow at the desired value.

The GR-QS-8 was cheaply available, but sure any similar precision needed valve will do.

The flow meter has a built-in needle valve, but strangely, when using this valve (partially closing it at inlet pressure of 5 bar, outlet pressure basically atmospheric), it causes the metering sphere to rotate quickly and with noise, showing completely incorrect readings. So I believe the design of this built-in needle valve is somewhat flawed.
Be sure to install any valve BEFORE the flow meter, because if you operate the flow meter under pressure, it will show completely incorrect readings. 16-18 L/min is plenty enough for the cutter to work without any burn marks. I have not optimized this much, but maybe you could also work at 12 L/min for most situations.

Cutting plywood works just great, with maybe 0.2 mm cut width.

All the contours are nicely defined.

Even stars or pointed objects can be cut without any trouble. These are just about 3-5 mm size!

With some materials, like, rubber and aramid enhanced seal papers, these don’t cut well, or not at all. And even the vendor (Klinger of brand Klingersil) doesn’t recommend or even support laser cutting of these materials, such seals still need to be cut or punched.

Other seal materials, like, reinforced paper (cellulose) materials including Elring Abil brand materials, these could perfectly fine.

Hewlett Packard HP-85B: a marvelous desktop computer revived

At its time, the HP-80 series of computers were really desirable and expensive computers, mainly intended for control of test equipment and associated calculations. There is a screen, a printer, a tape storage device, all in one case.

For its age, still looking great!

Some cleaning of the CRT, and some other parts of the electronics to remove dust. But no other repairs were needed to the electronics.

All the shielding, all the parts, it seems to have been hand-assembled in small series, with each part individually checked and hand-labeled…

Only trouble is with some stuck keys. These can be operated, but don’t spring back easily.

Unfortunately, a common problem that can’t be fixed easily. Reason is the age, fatigue of the plastic. So I just switched the few broken keys with less-used characters. This is easily done by pulling on the white actuators firmly.

Surely, the HP-85B had quite severally limited memory, and there were many programs available that would need to be purchased piecewise, but thanks to great enthusiasts (google: EBTKS), there is a solution: the EBTKS extension board will provide huge additional memory, mass storage, and a replacement of the tape drive.

A little test program, to set the time, date (no year 2000 problem…), and even the printer still works (just needed a little cleaning).

The paper is thermal paper, but easy to read and can be even used to print simple matrix graphics.
